1. Bluetooth Audio Fundamentals
1.1 Bluetooth Versions and Evolution
| Version | Year | Key Features | Audio Relevance |
|---|---|---|---|
| Bluetooth 2.0 | 2004 | EDR, basic profiles | Early BT headsets, mono audio |
| Bluetooth 4.0 | 2010 | LE, improved pairing | Better efficiency, wider adoption |
| Bluetooth 4.2 | 2014 | IPv6, Privacy 1.2 | Improved connectivity |
| Bluetooth 5.0 | 2016 | 2x speed, 4x range | Extended range, stable connection |
| Bluetooth 5.2 | 2020 | LE Audio, LC3 codec | Next-gen audio, multi-stream |
1.2 Bluetooth Audio Profiles
A2DP (Advanced Audio Distribution Profile):
- Primary profile for stereo audio streaming
- Supports SBC, AAC, aptX, LDAC codecs
- One-way audio streaming (source to sink)
HSP/HFP (Headset/ Hands-Free Profile):
- Voice calls and microphone audio
- Mono audio with microphone
- Used for voice commands in instruments
BLE Audio (Bluetooth 5.2+):
- LC3 Codec: Successor to SBC, better quality at lower bitrates
- Multi-stream Audio: Connect multiple earphones simultaneously
- Broadcast Audio: One-to-many audio sharing
- LE Audio Dongles: Connect legacy devices to BLE Audio
✓ Bluetooth Advantages
- Universal compatibility
- No dedicated transmitter needed
- Low power consumption
- Industry standard
- Automatic device pairing
✗ Bluetooth Limitations
- Latency (typically 100-300ms)
- Quality loss from compression
- Interference in crowded spectrum
- Range limitations
2. Audio Codec Comparison
Audio codecs determine the quality and characteristics of Bluetooth audio. Each codec makes different trade-offs between quality, latency, and bandwidth.
SBC (Sub-band Coding)
The default Bluetooth codec. All devices support SBC, but quality is limited.
Best For: Maximum compatibility, budget applications. Not recommended for instrument audio.
AAC (Advanced Audio Coding)
Apple-preferred codec. Good quality with efficient compression.
Best For: iOS users, streaming services. Better than SBC but still significant compression.
aptX (Original)
Qualcomm’s first improvement over SBC. Widely supported on Android.
Best For: Android users wanting better quality. Better than SBC, not as good as aptX HD.
aptX HD
High-definition audio codec. Supports 24-bit audio with low distortion.
Best For: High-quality audio playback. Widely supported on modern Android devices.
aptX Low Latency (LL)
Optimized for minimal delay. Critical for real-time applications.
Best For: Musical instruments, gaming, video sync. Requires both source and sink support.
aptX Adaptive
Next-gen codec that automatically adjusts to environment.
Best For: Versatile applications. Supports both high quality and low latency modes.
LDAC (Sony)
Sony’s high-resolution audio codec. Best quality available via Bluetooth.
Best For: Hi-res audio. Primarily Android/ Sony devices. Hi-Res Audio certified.
LC3 (Bluetooth 5.2)
Next-generation Bluetooth audio codec. Mandatory for LE Audio.
Best For: Future-proof designs. Better quality than SBC at same bitrate. Multi-stream support.
⚠️ Codec Compatibility Warning
Both the Bluetooth source (phone/computer) and the receiving device must support the same codec for it to be used. iOS devices do not support aptX or LDAC. Always implement automatic codec negotiation and fallback to SBC if needed.
3. Understanding Latency
Latency is the delay between generating audio and hearing it. For musical instruments, latency affects playing feel and timing accuracy.
3.1 Latency Thresholds
Latency Comparison by Application
3.2 Latency Budget Breakdown
| Component | Typical Latency | Notes |
|---|---|---|
| Audio encoding | 20-50ms | Codec-dependent |
| RF transmission | 3-10ms | Bluetooth protocol |
| Buffering (receiver) | 20-100ms | For stability |
| Audio decoding | 10-30ms | Codec-dependent |
| D/A conversion | 1-5ms | Hardware dependent |
| Total (optimized) | 40-80ms | With aptX LL |
| Total (standard) | 100-300ms | SBC/AAC |
3.3 Latency Solutions
✓ Minimizing Latency in Your Design
- Choose low-latency codecs (aptX LL, LC3)
- Reduce receiver-side buffer size (with stability trade-off)
- Use dedicated Bluetooth modules optimized for audio
- Implement adaptive buffering that adjusts to conditions
- Consider separate wireless for monitoring vs. playback
- Test with various source devices under different conditions
4. Implementation Options
4.1 Bluetooth Module Options
| Module Type | Examples | Integration | Cost Range | Best For |
|---|---|---|---|---|
| Audio-Only Module | CSR8670, QCC5100 | I2S/TWI output | $5-15 | Simple A2DP streaming |
| Audio+Voice Module | QCC3024, QCC3040 | I2S + ADC for mic | $8-20 | Streaming + voice control |
| BLE Audio Module | QCC5141, QCC3044 | LC3 + multi-stream | $10-25 | Future-proof designs |
| WiFi+Bluetooth | ESP32, RTL8720 | WiFi + BT/BLE | $3-10 | Connected products |
4.2 Implementation Architecture

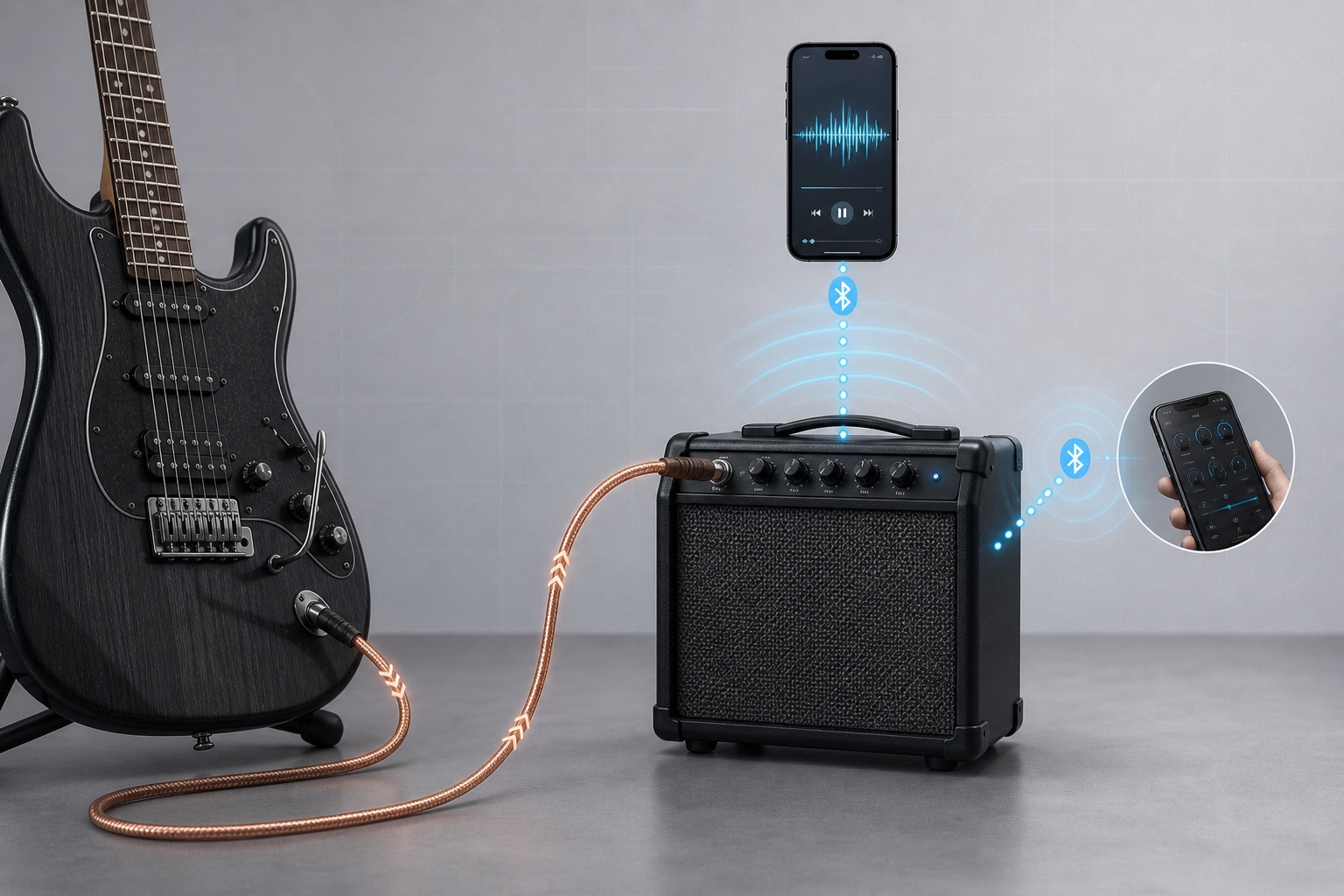

Signal Flow for Bluetooth Guitar Amplifier
Bluetooth Source (Phone/Computer)
Streams audio via A2DP profile using selected codec
Bluetooth Module (Amplifier)
Receives RF signal, decodes audio, outputs via I2S
Audio Processing (DSP/MCU)
Applies EQ, effects, volume control, mixing
Amplifier Stage
Preamp + power amp drives speaker
Speaker Output
Converts electrical signal to sound
4.3 Key Implementation Considerations
- Power Supply: Bluetooth modules typically need 3.3V, clean power. Add filtering for analog sections.
- Antenna Selection: PCB trace antenna for compact designs, external for better range
- Ground Plane: Proper RF grounding essential for stable operation
- Physical Placement: Keep module away from high-current traces, transformers
- Test Points: Include test points for firmware debugging and audio measurement
5. Instrument-Specific Applications
5.1 Guitar Amplifiers
Use Cases:
- Streaming backing tracks during practice
- Playing along with YouTube/streaming services
- Listening to music through amp speakers
- Amplifier as Bluetooth speaker for phone audio
Recommended Configuration:
- Codec: aptX Adaptive or aptX LL
- Integration: Separate BT input with mixer to main signal
- Latency: <50ms for monitoring applications
5.2 Acoustic Guitars with Pickups
Use Cases:
- Wireless transmission to PA or amp
- Practice with headphones
- Streaming performance to audience
Recommended Configuration:
- Codec: aptX LL or LC3
- Integration: Pickup preamp → ADC → BT module
- Power: Rechargeable battery with USB-C charging
5.3 In-Ear Monitoring
Use Cases:
- Stage monitoring via wireless earphones
- Click track and backing tracks
- Communication with IEM system
Recommended Configuration:
- Codec: aptX LL (dedicated BT transmitter)
- Integration: Multi-channel transmitter for IEM
- Latency: <30ms critical for time alignment
⚠️ Critical: Don’t Use Standard Bluetooth for Stage Monitoring
Standard Bluetooth latency (100-300ms) is unacceptable for stage monitoring where timing is critical. Use dedicated wireless systems (Planet Waves, Sennheiser G4, Shure PSM) for professional monitoring. Bluetooth can be used for playback audio (backing tracks) but not for real-time monitoring.
6. Design Considerations
6.1 PCB Layout Guidelines
✓ RF Design Checklist
- Maintain 50-ohm impedance for RF traces
- Ground plane under antenna area
- Keep RF section away from switching power supplies
- Use appropriate decoupling capacitors
- Follow module manufacturer’s layout guidelines
- Include RF shielding if required
- Provide adequate heat sinking for power stages
6.2 Certification Requirements
Bluetooth-enabled products require:
- Bluetooth SIG Qualification: Required for using Bluetooth trademark
- FCC/CE Testing: RF emissions testing
- SAR Testing: For products near the body
- Region-specific: Additional requirements by market
6.3 Testing Requirements
- Audio Quality: Frequency response, THD+N, SNR measurements
- Latency Testing: Measure end-to-end delay with various codecs
- Range Testing: Test in real-world environments with obstructions
- Interoperability: Test with multiple source devices and OS versions
- Stress Testing: Multiple connection/disconnection cycles
- Audio-visual Sync: For video applications
Frequently Asked Questions
Is Bluetooth audio good enough quality for guitar playing?
Modern Bluetooth codecs like aptX HD, LDAC, and AAC deliver CD-quality audio (16-bit/44.1kHz). For most practice and casual playing, Bluetooth audio quality is excellent. However, for studio recording or professional performance, wired connections remain superior due to zero latency and maximum fidelity. Choose aptX LL or LDAC for lowest latency applications.
What is the latency issue with Bluetooth audio?
Standard Bluetooth latency ranges from 100-300ms, which causes noticeable delay between playing and hearing sound. For music, this makes real-time playing difficult. Solutions include aptX Low Latency (40-50ms), LC3 codec, or using Bluetooth for audio only (not monitoring). Some systems use separate wireless systems for monitoring vs. playback.
Which Bluetooth codec is best for musical instruments?
For musical instruments: (1) aptX LL for lowest latency in playback applications, (2) LDAC for highest quality when latency isn’t critical, (3) AAC for Apple device compatibility, (4) LC3 for future-proofing with Bluetooth 5.2 devices. Avoid SBC for instrument applications. Many professional solutions use proprietary 2.4GHz wireless instead of Bluetooth for guaranteed low latency.
How do I implement Bluetooth in a guitar amplifier design?
Key steps: (1) Select Bluetooth module with required codec support (aptX LL, LDAC), (2) Design PCB with proper RF layout, (3) Interface module via I2S to your audio processor, (4) Implement audio path mixing (BT input with guitar signal), (5) Pass FCC/CE testing with BT qualification, (6) Test with multiple source devices for compatibility.
What are the certification requirements for Bluetooth audio products?
Requirements include: Bluetooth SIG qualification (required for Bluetooth trademark), FCC testing (RF emissions for US), CE testing (EMC and safety for Europe), and region-specific tests. Products used near the body may need SAR testing. Budget 4-8 weeks and $5,000-15,000 for Bluetooth qualification and regulatory testing.
